1. Operational Principle

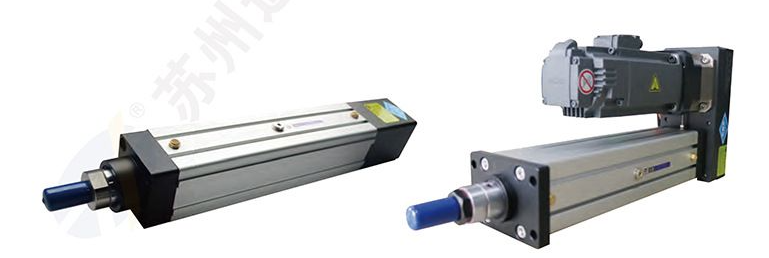

Product Name Servo Electric Cylinder Model No. TJER180
Manufacturer TONGJIN PRECISION Product Color As Shown
Product Type Manual/Automatic Whether to customize Customizable
2. Product Model Definition
Example: TJER220 S800 B R 05 A M C 20 05 0 P11 O/C N/P
| TJER220—Series No.
TJER160
TJER190 TJER220 TJER250 | S800—Effective Stroke TJER160:50~1500mm TJER190:50~2000mm TJER220:50~2500mm TJER250:50~3000mm | B—Screw Type
A:Acme Screw
B:Ball Screw C:Roller Screw |
| R—Anti-rotation
R:With
T:Without | 05—Screw Lead
TJER160:10,20mm TJER190:10,20mm TJER220:10,20mm TJER250:10,20mm | A—Motor Mounting Type
A:Liner B:Parallel |
| M—Cylinder Mounting Type M1:Double side mount M2:Side turnnion mount M3:Front flange mount M4:Rear flange mount M5:Rear clevis mount M6:Rear shaft mount MX:Customized | C —Load Connection Type C1:Male C2:Female C3:U-bolt C4:Ball head hinge CX:Customized | 20—Power 01:100W 02:200W 04:400W 08:750W 10:1000W 20:2000W 30:3000W |
| 05—Reduction Ratio
03:Three-to-one
05:Five-to-one 10:Ten-to-one 20:Twenty-to-one | 2—Number Of Limit Switches (Default is normally open NPN switch) | O/C—Limit Switches O:Normally Open C:Normally Close |
| N/P—Sensing Type N:NPN P:PNP | | |
Mark:
1. In order to ensure the effective stroke, two ends need to be reserved 5mm space.
2. The sensor couldn’t be mounted on the same side of the motor when the motor is parallel mounted.
3. Electrical Servo Cylinder Drive Torque
| Screw specification | 6310 |
| Standard motor rated power KW | 5.5 | 7.5 |
| Motor rated torque N·m | 35 | 48 |
| Rated motor speed r/min | 1500 | 1500 |
| Reduction ratio | 5 | 7 | 5 | 7 |
| Standard motor rated thrust kN | 98.91 | 100 | 100 | 100 |
| Standard motor rated speed mm/s | 50 | 36 | 50 | 36 |
| Repeated positioning accuracy mm | ±0.01/±0.02 |
| Maximum effective travel mm | 2000 |
| Maximum load thrust kN | 100 |
| Maximum expansion speed mm/s | 250 |
| Proximity switch(3-wire) | IME18-08BNSZW2S(Normally open) IME18-08BNOZW2S(Normally close) | NPN Line length 2M |
| IME18-08BPSZW2S(Normally open) IME18-08BPOZW2S(Normally close) | PNP Line length 2M |
| Screw specification | 6320 |
| Standard motor rated power KW | 5.5 | 7.5 |
| Motor rated torque N·m | 35 | 48 |
| Rated motor speed r/min | 1500 | 1500 |
| Reduction ratio | 5 | 7 | 10 | 12 | 5 | 7 | 10 | 12 |
| Standard motor rated thrust kN | 49.46 | 69.24 | 98.91 | 118.69 | 67.82 | 94.95 | 120 | 120 |
| Standard motor rated speed mm/s | 100 | 71 | 50 | 42 | 100 | 71 | 50 | 42 |
| Repeated positioning accuracy mm | ±0.01/±0.02 |
| Maximum effective travel mm | 2000 |
| Maximum load thrust kN | 130 |
| Maximum expansion speed mm/s | 250 |
| Proximity switch(3-wire) | IME18-08BNSZW2S(Normally open) IME18-08BNOZW2S(Normally close) | NPN Line length 2M |
| IME18-08BPSZW2S(Normally open) IME18-08BPOZW2S(Normally close) | PNP Line length 2M |
4. Applications
Application areas Military equipment, experimental and recreational equipment, food and medical machinery and equipment, and other production equipment.
(1) Military equipment:radar, missile erector, armored vehicle swing platform, special equipment and other warships and aircraft hatch,opening, seat height adjustment, weapon tracking system,actuator,experimental lifting support, tank artillery high and low direction action adjustment, The push of rocket fuel, the opening of furnace door, etc.
(2) Special equipment:industrial automation production line, assembly line, logistics transmission, lifting platform, offset control, valve control, coordinate manipulator, mechanical equipment CT Kama knife, food and medicine industry, CNC machine tools, industry packaging machine, Automotive electronic press, textile equipment winding machine indexing, die position control, clamping, drilling, positioning.
(3) Experimental Equipment: Simulation platform, test bed, wave machine, testing equipment etc.
This type is especially suitable for :
servo pressing, motor assembly production line and you can also purchase our servo pressing software together.
5. Why choose us?
1. Compact structure and small dimension.
2. High rigidity, low inertness and fast response.
3. High reliability and long operating life.
4. Energy saving&less noise.
5. Convenient assembly and use,simple maintenance.
6. One years of quality assurance, life - long maintenance service.
